6. Classless Queuing Disciplines (qdiscs)
Each of these queuing disciplines can be used as the primary qdisc on an
interface, or can be used inside a leaf class of a classful qdiscs.
These are the fundamental schedulers used under Linux. Note that the
default scheduler is the pfifo_fast.
6.1. FIFO, First-In First-Out (pfifo and bfifo)
| This is not the default qdisc on Linux interfaces. Be certain to see
Section 6.2 for the full details on the default
(pfifo_fast) qdisc.
|

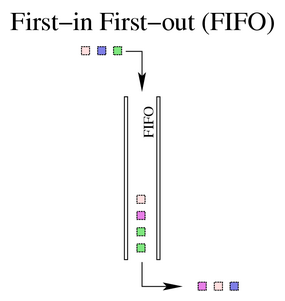

The FIFO algorithm forms the basis for the default qdisc on all Linux
network interfaces (pfifo_fast). It performs no shaping or
rearranging of packets. It simply transmits packets as soon as it can
after receiving and queuing them. This is also the qdisc used inside
all newly created classes until another qdisc or a class replaces the
FIFO.
A real FIFO qdisc must, however, have a size limit (a buffer size) to
prevent it from overflowing in case it is unable to dequeue packets as
quickly as it receives them. Linux implements two basic FIFO
qdiscs, one based on bytes, and one on packets. Regardless of
the type of FIFO used, the size of the queue is defined by the parameter
limit. For a pfifo the unit is understood
to be packets and for a bfifo the unit is understood to be bytes.
Example 6. Specifying a limit for a packet
or byte FIFO
[root@leander]# cat bfifo.tcc
/*
* make a FIFO on eth0 with 10kbyte queue size
*
*/
dev eth0 {
egress {
fifo (limit 10kB );
}
}
[root@leander]# tcc < bfifo.tcc
# ================================ Device eth0 ================================
tc qdisc add dev eth0 handle 1:0 root dsmark indices 1 default_index 0
tc qdisc add dev eth0 handle 2:0 parent 1:0 bfifo limit 10240
[root@leander]# cat pfifo.tcc
/*
* make a FIFO on eth0 with 30 packet queue size
*
*/
dev eth0 {
egress {
fifo (limit 30p );
}
}
[root@leander]# tcc < pfifo.tcc
# ================================ Device eth0 ================================
tc qdisc add dev eth0 handle 1:0 root dsmark indices 1 default_index 0
tc qdisc add dev eth0 handle 2:0 parent 1:0 pfifo limit 30
|
6.2. pfifo_fast, the default Linux qdisc

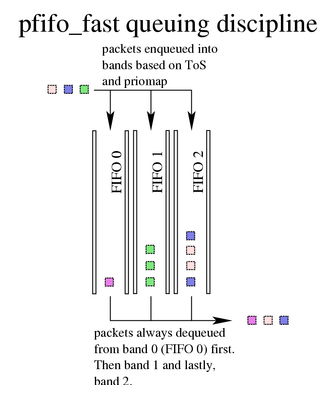

The pfifo_fast qdisc is the default qdisc for all interfaces under
Linux. Based on a conventional FIFO qdisc, this qdisc also
provides some prioritization. It provides three different bands
(individual FIFOs) for separating traffic. The highest priority traffic
(interactive flows) are placed into band 0 and are always serviced
first. Similarly, band 1 is always emptied of pending packets before
band 2 is dequeued.
There is nothing configurable to the end user about the pfifo_fast
qdisc. For exact details on the priomap and use of
the ToS bits, see the pfifo-fast
section of the LARTC HOWTO.
6.3. SFQ, Stochastic Fair Queuing

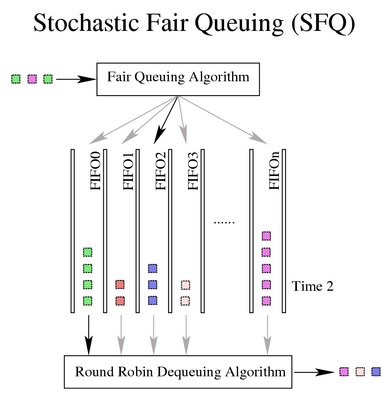

The SFQ qdisc attempts to fairly distribute opportunity to
transmit data to the network among an arbitrary number of
flows. It accomplishes this by using a hash function to
separate the traffic into separate (internally maintained) FIFOs
which are dequeued in a round-robin fashion. Because there is the
possibility for unfairness to manifest in the choice of hash function,
this function is altered periodically. Perturbation (the parameter
perturb) sets this periodicity.
Example 7. Creating an SFQ
[root@leander]# cat sfq.tcc
/*
* make an SFQ on eth0 with a 10 second perturbation
*
*/
dev eth0 {
egress {
sfq( perturb 10s );
}
}
[root@leander]# tcc < sfq.tcc
# ================================ Device eth0 ================================
tc qdisc add dev eth0 handle 1:0 root dsmark indices 1 default_index 0
tc qdisc add dev eth0 handle 2:0 parent 1:0 sfq perturb 10
|
Unfortunately, some clever software (e.g. Kazaa and eMule among others)
obliterate the benefit of this attempt at fair queuing by opening as
many TCP sessions (flows) as can be sustained. In many
networks, with well-behaved users, SFQ can adequately distribute
the network resources to the contending flows, but other measures may be
called for when obnoxious applications have invaded the network.
See also
Section 6.4 for an SFQ qdisc with more exposed
parameters for the user to manipulate.
6.4. ESFQ, Extended Stochastic Fair Queuing
Conceptually, this qdisc is no different than SFQ although it
allows the user to control more parameters than its simpler cousin.
This qdisc was conceived to overcome the shortcoming of SFQ
identified above. By allowing the user to control which hashing
algorithm is used for distributing access to network bandwidth, it
is possible for the user to reach a fairer real distribution of
bandwidth.
Example 8. ESFQ usage
Usage: ... esfq [ perturb SECS ] [ quantum BYTES ] [ depth FLOWS ]
[ divisor HASHBITS ] [ limit PKTS ] [ hash HASHTYPE]
Where:
HASHTYPE := { classic | src | dst }
|
FIXME; need practical experience and/or attestation here.
6.5. GRED, Generic Random Early Drop
FIXME; I have never used this. Need practical experience or
attestation.
Theory declares that a RED algorithm is useful on a backbone or core
network, but not as useful near the end-user. See the section on
flows to see a general discussion of the thirstiness of TCP.
6.6. TBF, Token Bucket Filter

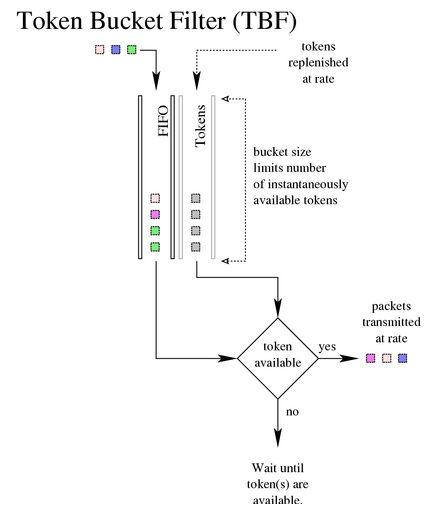

This qdisc is built on tokens and buckets. It
simply shapes traffic transmitted on an interface. To limit the speed
at which packets will be dequeued from a particular interface, the
TBF qdisc is the perfect solution. It simply slows down
transmitted traffic to the specified rate.
Packets are only transmitted if there are sufficient tokens available.
Otherwise, packets are deferred. Delaying packets in this fashion will
introduce an artificial latency into the packet's round trip time.
Example 9. Creating a 256kbit/s TBF
[root@leander]# cat tbf.tcc
/*
* make a 256kbit/s TBF on eth0
*
*/
dev eth0 {
egress {
tbf( rate 256 kbps, burst 20 kB, limit 20 kB, mtu 1514 B );
}
}
[root@leander]# tcc < tbf.tcc
# ================================ Device eth0 ================================
tc qdisc add dev eth0 handle 1:0 root dsmark indices 1 default_index 0
tc qdisc add dev eth0 handle 2:0 parent 1:0 tbf burst 20480 limit 20480 mtu 1514 rate 32000bps
|
