3. OLSR for Linux
There are several OLSR implementation for Linux, but not all of them
support IPv6. You should know how to enable and use IPv6
on Linux. Peter Bieringer has written an excellent Linux IPv6
HOWTO.
There is one OLSR implementation that is becoming the
"standard" and most widely used. It goes by the
descriptive name "OLSRd" (old Unik-OLSR).
OLSRd is an implementation based on the INRA C code, but has been
almost completely rewritten, so there is not much left of the original
INRA code (that mean it almost GPL). OLSRd also is under very rapid
development, and if you report in a bug, it is usually fixed in a
matter of hours.
OLSRd fully comply
to the OLSR RFC, support for plugins, and it has an optional GUI
interface (to see what's going on). The implementation also has a
informative "up-to-date" web-page with links to mailing
lists and papers.
3.1. Installing OLSRd
There are up-to multiple new releases of OLSRd each month, so
check the OLSRd web-site
for the newest release.
The latest release as of this writing is 0.4.3, but by the
time you read this there is almost certain a new release. Fetch the
latest release from
http://www.olsr.org/index.cgi?action=download.
Unpack, compile and install the source code:
# tar jxvf uolsrd-x.y.z
# cd unik-olsrd-x.y.z
# make
# make install
|
The olsrd gets installed to
/usr/bin/ and a default config file,
olsrd.conf can be found under
/etc
Check out the /etc/olsrd.conf config
file, and change values to fit your system. All values in this file
can be overridden with command line options to
olsrd. The main options to change are:
# Debug level(0-9)
# If set to 0 the daemon runs in the background
DEBUG 1
# IP version to use (4 or 6)
IPVERSION 6
# A list of whitespace separated interface names
INTERFACES eth1
|
Later on, when you know OLSRd is configured correctly, you may set
"DEBUG" to 0 to make it run in
the background. You may then also add it to your init scripts. But
to test that everything first, set this to at least
1 (setting this higher will produce a lot
more info messages on APM, forwarding, parsing of the config file
etc.)
3.2. Using OLSRd
3.2.1. On one host
When OLSRd is installed and configured, it can be started
as root with:
All the settings in /etc/olsrd.conf
can be overridden by command line options:
# olsrd -i eth1 -ipv6 -d 1
|
Would start olsrd listening on
interface eth1 using IPv6 and with debug
messages.
We start olsrd:
# olsrd -i eth1 -d 1 -ipv6
*** UniK olsrd-0.4.3 ***
hello interval = 2.00 hello int nonwireless: = 4.00
tc interval = 5.00 polling interval = 0.10
neighbor_hold_time = 6.00 neighbor_hold_time_nw = 12.00
topology_hold_time = 15.00 tos setting = 16
hna_interval = 15.00 mid_interval = 5.00
Willingness set to 3 - next update in 20.000000 secs
Using IP version 6
Using multicast address ff05::15
---- Interface configuration ----
eth1:
Address: fec0:106:2700::10
Multicast: ff05::15
Interface eth1 set up for use with index 0
Main address: fec0:106:2700::10
NEIGHBORS: l=linkstate, m=MPR, w=willingness
Thread created - polling every 0.10 seconds
neighbor list: 11:43:17.214807
neighbor list: 11:43:19.194967
neighbor list: 11:43:21.395046
neighbor list: 11:43:23.604800
neighbor list: 11:43:25.694875
|
- This shows all the settings OLSRd is using. You may
override these by either specifying it in the config file
(/etc/olsrd.conf) or specify it at the
command line. Read the OLSR RFC for a
description on what all these settings means.
- OLSRd found our interface. If you are using OLSRd with
multiple interfaces, "Multiple Interface
Declaration" (MID) messages will be generated.
- If you are using OLSRd with multiple interfaces, it will
pick the first interface specified as the "main"
address.
- Since no other hosts are running OLSRd, this list is
empty.
Another thing worth noticing, is that an entry is added to
our routing table:
# route -A inet6
Destination: Next Hop Flags Metric Ref Use Iface
...
ff05::15/128 ff05::15 UAC 0 1 1 eth1
...
|
This is the IPv6 multicast address OLSR is using to talk to
other nodes running OLSR.
3.2.3. Movement
When every node can reach every other node, it's no fun. Let's
start moving the nodes, so that node "A" and
"B" are out of (radio) range of each other. So when
we move node "A" far enough away so that
it can't hear node "C", all traffic must go through
node "B":
Tip: Instead of physically moving the nodes around, you can use
ip6tables. You can drop all packet using the
MAC-address. You just need to block on one node:
# ip6tables -A INPUT -m mac --mac-source XX:XX:XX:XX:XX:XX -j DROP
|
The output from OLSRd on host A is then:
neighbor list: 13:22:35.693587
fec0:106:2700::11:l=1:m=1:w=3[2hlist:fec0:106:2700::12:]
neighbor list: 13:22:40.093588
fec0:106:2700::11:l=1:m=1:w=3[2hlist:fec0:106:2700::12:]
neighbor list: 13:22:44.053594
fec0:106:2700::11:l=1:m=1:w=3[2hlist:fec0:106:2700::12:]
neighbor list: 13:22:48.233594
fec0:106:2700::11:l=1:m=1:w=3[2hlist:fec0:106:2700::12:]
neighbor list: 13:22:52.193605
fec0:106:2700::11:l=1:m=1:w=3[2hlist:fec0:106:2700::12:]
|
-
We can reach node B directly, and via node
B we can reach node C.
The routing table also gets updated. For node
A to reach node C it
must go through node B:
# route -A inet6
Destination: Next Hop Flags Metric Ref Use Iface
...
fec0:106:2700::11/128 :: UH 1 1 0 eth1
fec0:106:2700::12/128 fec0:106:2700::11 UGH 2 0 0 eth1
...
|

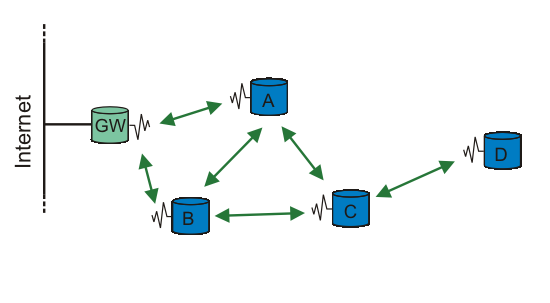

3.3. What about HNA messages?
"
In order to provide this capability of injecting external routing
information into an OLSR MANET, a node with such non-MANET interfaces
periodically issues a Host and Network Association (HNA) message,
containing sufficient information for the recipients to construct an
appropriate routing table."
"
An example of such a situation could be where a node is equipped with
a fixed network (e.g., an Ethernet) connecting to a larger network as
well as a wireless network interface running OLSR." --- RFC3626: OLSR, section
12 (page 51).
To have one node, act as a gateway and send out HNA messages, you
must change the HNA6 in
/etc/olsrd.conf:
# HNA IPv6 routes
# syntax: netaddr prefix
# Example Internet gateway
HNA6 :: 0
|
When you start OLSRd, you will see the node
is sending out HNA messages periodically:
...
Sending HNA (48 bytes)...
...
|
When the other nodes receives a HNA message, they update their
routing table:
# route -A inet6
Destination: Next Hop Flags Metric Ref Use Iface
...
::/0 fec0:106:2700::1 UG 1 0 0 eth1
...
|
You may also have multiple nodes in a MANET to act as gateways
(sending out HNA messages). Each mobile node then use the nearest
gateway.
3.4. Plugin support
As of version 0.4.3 OLSRd also support plugins. Plugins may be
used to add extended functionality in a MANET. If only a subset of
the nodes knows how to interpret the messagetype, it will be
forwarded by all the nodes by the "default forwarding
algorithm"
(see section 3.4.1 in the OLSR RFC). This way
certain nodes may add special functionlity into OLSR.
As of this writing, two example plugins is included in the
OLSRd release. One of these plugins add routing based on
powerstatus. If one node has low battery, it can set its willingness
lower and traffic may be routed through other nodes.
3.5. Optional GUI
OLSRd also has an optional GUI, which can show a list of
available nodes and grab packets. To compile the GUI front end,
you must have GTK2. In unik-olsrd-x.y.z
directory do:
# cd front-end
# make
# make install
|
|
Remember to start OLSRd with the
-ipc switch or set
IPC-CONNECT yes in
/etc/olsrd.conf to enable the GUI to chat
with OLSRd.
|
To see some examples of the use of GUI, check out
http://www.olsr.org/index.cgi?action=gui
3.6. Other OLSR implementations
There is also other OLSR implementations, none have gained as
much popularity as OLSRd, and none of them (except QOLSR?) are fully RFC
compliant.
3.6.1. INRIA
INRIA was one of the first(?) implementation of OLSR http://hipercom.inria.fr/olsr/#code.
Their web-site has not been updated for quite a while, and the
OLSR code you can download only complies to
draft-ietf-manet-olsr-03.txt (it's now an RFC). There is suppose to
be another more up-to-date version of INRIA olsr, but I have not
found it. INRIA OLSR does not support IPv6.
3.6.3. CRCOLSR
CRCOLSR is a implementation based on the French INRIA
code. It is is supposed to be maintained by "Communication
Research Center" (CRC) in Canada. But as of this writing,
there have been no new releases since April 3, 2003.
http://pf.itd.nrl.navy.mil/projects/olsr/
3.6.4. QOLSR
QOLSR is aiming to provide "Quality of
Service" routing in wireless mobile ad hoc
networks. There is no QoS support at the time of this writing,
and support for ipv4/ipv6 is triggered at compile time. Written
in C++.
