Now you should have a working MIPL patched kernel, installed
userlevel tools and enabled automatic startup at boot. If anything
went wrong, go through the above sections carefully.

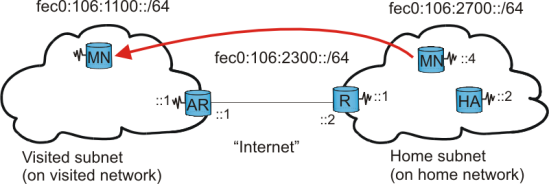

4.2. Step-by-step configuration
4.2.1. Setting up a fully functional IPv6 network
Before we can start testing mobile IP, we need a fully
functional IPv6 network. All the nodes should be able to ping
each other. This is a crucial part. If, for
example, AR is not able to ping HA, then there will be no binding
update.
I will give a brief instruction to get our network up and
running using IPv6. For more info on setting up an IPv6 network,
you can read Peter Bieringer's excellent Linux IPv6
HOWTO.
I've turned off encryption for simplicity - NOTE that you
should ALWAYS use encryption when dealing with wireless
networks!
Also note that the different wireless networks
have different ESSIDs!
MN: The Mobile Node has one wireless
interface. Forwarding should be turned off, but should accept
autoconf and ra's:
# iwconfig eth0 mode ad-hoc essid homenet enc off
# ifconfig eth0 inet6 add fec0:106:2700::4/64
# echo "0" > /proc/sys/net/ipv6/conf/eth0/forwarding
# echo "1" > /proc/sys/net/ipv6/conf/eth0/autoconf
# echo "1" > /proc/sys/net/ipv6/conf/eth0/accept_ra
# echo "1" > /proc/sys/net/ipv6/conf/eth0/accept_redirects
# /etc/init.d/mobile-ip6 start
|
HA: The Home Agent has one
wireless interface. It should have forwarding turned on
because it uses normal routing to deliver packets captured
from a physical interface to the virtual tunnel
interface. Note: You must add a default route or else
HA will have problem contacting the MN on visited LAN's. One
possible solution is to use HA as the default router of the
home network.
# iwconfig eth0 mode ad-hoc essid homenet enc off
# ifconfig eth0 inet6 add fec0:106:2700::2/64
# echo "1" > /proc/sys/net/ipv6/conf/eth0/forwarding
# echo "0" > /proc/sys/net/ipv6/conf/eth0/autoconf
# echo "0" > /proc/sys/net/ipv6/conf/eth0/accept_ra
# echo "0" > /proc/sys/net/ipv6/conf/eth0/accept_redirects
# ip route add ::/0 via fec0:106:2700::1
# /etc/init.d/mobile-ip6 start
|
R: The (home) Router has two
interfaces; one wireless and one line. The Router must have
forwarding turned on.
# ifconfig eth0 inet6 add fec0:106:2300::2/64
# iwconfig eth1 mode ad-hoc essid homenet enc off
# ifconfig eth1 inet6 add fec0:106:2700::1/64
# echo "1" > /proc/sys/net/ipv6/conf/all/forwarding
# echo "0" > /proc/sys/net/ipv6/conf/all/autoconf
# echo "0" > /proc/sys/net/ipv6/conf/all/accept_ra
# echo "0" > /proc/sys/net/ipv6/conf/all/accept_redirects
# ip route add fec0:106:1100::/64 via fec0:106:2300::1
|
AR: The Access Router (on a foreign
network) also has two interfaces; one wireless and one
line. Forwarding must be turned on.
# ifconfig eth0 inet6 add fec0:106:2300::1/64
# iwconfig eth1 mode ad-hoc essid visitnet enc off
# ifconfig eth1 inet6 add fec0:106:1100::1/64
# echo "1" > /proc/sys/net/ipv6/conf/all/forwarding
# echo "0" > /proc/sys/net/ipv6/conf/all/autoconf
# echo "0" > /proc/sys/net/ipv6/conf/all/accept_ra
# echo "0" > /proc/sys/net/ipv6/conf/all/accept_redirects
# ip route add fec0:106:2700::/64 via fec0:106:2300::2
|
Instead of modifying proc variables, you can use
sysctl.
Note: We are setting static routes on our test-bed. You
should now be able to ping all the hosts from every host.
4.2.2. Configuring Mobile IPv6
The last configuration is MIPv6 settings in
network-mip6.conf. In Debian/Slackware the
file is found under /etc/. (RedHat the file
is found under /etc/sysconfig/.) The file
should be pretty self-explanatory.
HA: The HA config file should
contain these settings:
# cat /etc/network-mip6.conf
# Home Agent configuration file
FUNCTIONALITY=ha
DEBUGLEVEL=1
MIN_TUNNEL_NR=1
MAX_TUNNEL_NR=5
TUNNEL_SITELOCAL=yes
|
MN: The MN config file should
look like this:
# cat /etc/network-mip6.conf
# Mobile Node configuration file
FUNCTIONALITY=mn
DEBUGLEVEL=1
TUNNEL_SITELOCAL=yes
MIN_TUNNEL_NR=1
MAX_TUNNEL_NR=3
HOMEDEV=mip6mnha1
HOMEADDRESS=fec0:106:2700::4/64 # MN's home adress
HOMEAGENT=fec0:106:2700::2/64 # HA's address
|
Next, start mobile-IP:
# /etc/init.d/mobile-ip6 start
Starting Mobile IPv6: OK
|
You can verify that it started by doing a
ifconfig on HA. If the tunnel(s) comes up,
ip6tnl1, mobile-ip6 is started:
# ifconfig
eth1 Link encap:Ethernet HWaddr 00:02:2D:2D:DE:79
inet6 addr: fec0:106:2700::2/64 Scope:Site
inet6 addr: fe80::202:2dff:fe2d:de79/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:618 errors:6 dropped:6 overruns:0 frame:6
TX packets:1485 errors:22 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:100
RX bytes:87914 (85.8 KiB) TX bytes:252596 (246.6 KiB)
Interrupt:3 Base address:0x100
ip6tnl1 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
UP POINTOPOINT RUNNING NOARP MTU:1460 Metric:1
RX packets:6 errors:0 dropped:0 overruns:0 frame:0
TX packets:6 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:576 (576.0 b) TX bytes:624 (624.0 b)
ip6tnl2 Link encap:UNSPEC HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00
UP RUNNING NOARP MTU:1460 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:0 (0.0 b) TX bytes:0 (0.0 b)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:8 errors:0 dropped:0 overruns:0 frame:0
TX packets:8 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:560 (560.0 b) TX bytes:560 (560.0 b)
|
- The tunnel is up and ready for connections.
- Another tunnel ready.
You will also see the mipv6 kernel modules are loaded (MN):
# lsmod
Module Size Used by Not tainted
mip6_mn 59888 0 (unused)
ipv6_tunnel 11448 1 [mip6_mn]
mip6_base 40728 0 [mip6_mn]
ipv6 179764 -1 [mip6_mn ipv6_tunnel mip6_base]
...
|
4.2.3. Configuring radvd on AR
When MN comes to a new network, it does a link-local address
configuration, going to the next phase if that succeeds. I'll let
[RFC2462]
(IPv6 Stateless Address Autoconfiguration) describe the next
phase:
"The next phase of autoconfiguration involves obtaining a Router
Advertisement or determining that no routers are present. If routers
are present, they will send Router Advertisements that specify what
sort of autoconfiguration a host should do. If no routers are
present, stateful autoconfiguration should be invoked."
"Routers send Router Advertisements periodically, but the delay
between successive advertisements will generally be longer than a
host performing autoconfiguration will want to wait. To
obtain an advertisement quickly, a host sends one or more Router
Solicitations to the all-routers multicast group." --- page 8
This is where we use
RADVD.
Read [RFC2462]
more more details concerning IPv6 Stateless Address
Autoconfiguration.
We'll configure RADVD on AR's wireless interface. The
radvd.conf file should contain this:
# cat /etc/radvd.conf
interface eth1
{
AdvSendAdvert on;
AdvIntervalOpt on;
MinRtrAdvInterval 3;
MaxRtrAdvInterval 10;
AdvHomeAgentFlag off;
prefix fec0:106:1100::/64
{
AdvOnLink on;
AdvAutonomous on;
AdvRouterAddr on;
};
};
|
We then start it:
# /etc/init.d/radvd start
|
You should now be able to use radvdump to
see that the radvd messages really are being sent periodically:
# radvdump
Router advertisement from fe80::202:2dff:fe54:d1b2 (hoplimit 255)
Received by interface eth1
# Note: {Min,Max}RtrAdvInterval cannot be obtained with radvdump
AdvCurHopLimit: 64
AdvManagedFlag: off
AdvOtherConfigFlag: off
AdvHomeAgentFlag: off
AdvReachableTime: 0
AdvRetransTimer: 0
Prefix fec0:106:1100::/64
AdvValidLifetime: 2592000
AdvPreferredLifetime: 604800
AdvOnLink: on
AdvAutonomous: on
AdvRouterAddr: off
AdvSourceLLAddress: 00 02 2D 54 D1 B2
|
Note! When using radvd on HA and enabling
"autoconf" (in proc), you will also get an
autogenerated IPv6 address on MN (which is superfluous) in
addition to your static address:
