2. Getting Started
2.1. Linux Printing Components
The main components we will be using include:
CUPS
The Common UNIX Printing System
(http://www.cups.org)
is a print spooler and a set
of support programs for using and administering printers.
Samba
Samba
(http://www.samba.org)
is software that allows non-Windows computers to act
like Windows computers on a network by implementing Windows file
and printer sharing protocols.
Printer Drivers
LinuxPrinting.org
(http://www.linuxprinting.org)
offers the largest number of printer drivers
and maintains a database of printers supported under Linux. You must
download a printer driver for each model of printer you want to use
in Linux. A printer driver consists of a PPD file and a filter
program, or only a PPD file for PostScript printers.
2.2. Required Packages
All of the required programs and libraries are part of the standard
Debian archive. You may download and install these packages with the
usual Debian packaging tools. The following is a list of packages
you need:
- cupsys
CUPS server
- cupsys-bsd
CUPS BSD commands
- cupsys-client
CUPS client programs
- foomatic-bin
LinuxPrinting.org printer support programs
- samba
Samba SMB/CIFS server for UNIX
- smbclient
Samba SMB/CIFS client for UNIX
- gs-esp
ESP Ghostscript
(
http://www.cups.org/ghostscript.php)
Not available as a Debian GNU/Linux 3.0 (a.k.a. woody) package,
use "gs" instead.
- a2ps
GNU A2PS
(
http://www.gnu.org/software/a2ps/)
The following commands will install these packages.
You will have to become root or use sudo to execute these commands:
apt-get update
apt-get install cupsys cupsys-bsd cupsys-client foomatic-bin samba smbclient gs-esp a2ps
|
Additional packages may be required for specific printers. For example,
the hpijs package must be installed for many HP InkJet,
DeskJet and LaserJet printers to function properly. The PPD files for these
printers are identified by the string hpijs in their
filenames.
2.3. CUPS Local Printer Configuration
The lpadmin command is used to configure printers. The
following is an example of setting up a laser printer with CUPS.
You will have to become root or use sudo to execute these commands:
/usr/sbin/lpadmin -p Laser -v parallel:/dev/lp0 -P /root/laser.ppd
/usr/bin/enable Laser
/usr/sbin/accept Laser
/usr/sbin/lpadmin -d Laser
|
Please note that bash has a builtin command called
enable, so bash users must use the full path
(/usr/bin/enable) to enable printers.
The first command creates a new printer called "Laser"
that is connected to the first parallel port and is using the PPD
file /root/laser.ppd.
"Laser" is then enabled and told to accept jobs with
the enable and accept commands.
The last command sets "Laser" as the default printer.
If your printer is connected to a USB port or if you do not know the
correct device-uri for your printer try running
/usr/sbin/lpinfo -v to get a list of available
printer devices.
Make sure your printer's page size and other options are set correctly
by running /usr/bin/lpoptions -l.
More detailed information about printer configuration
is available in the CUPS documentation.
2.4. Linux Printing Basics
Documents are spooled by using either lpr or
lp followed
by the file name. You may view the printer queue and check the printer
status with the command lpstat -o or
lpstat -p. To cancel a print job use either
cancel or lprm followed by the job id.

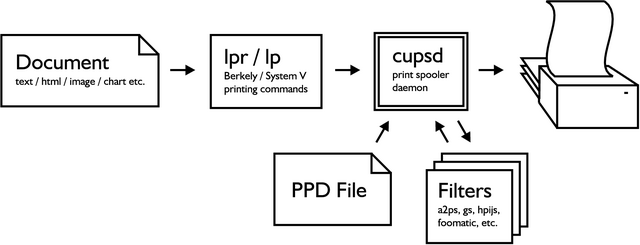

The CUPS spooler daemon is called cupsd.
It converts documents
to PostScript, then converts them to a format native to the printer
Figure 1. Printers that do not understand PostScript
use a rasterized, or bitmap, format for documents. Rasterized formats
can be much larger than the original PostScript, and will take longer
to send to the printer.
Filters are programs used to convert documents from one format to
another. The CUPS spooler will do its best to find a suitable filter
for the documents you send. If no filter suitable for converting your
document is installed you will receive an error similar to lpr:
unable to print file: client-error-document-format-not-supported.
Many applications do not include filters for their documents formats.
Documents created with these applications can only be printed from
within the application itself, unless the document is exported to
PostScript or another standard format.
