4. Installing Tomcat
Download a binary distribution of
Tomcat
from the Apache Jakarta website:
If you don't want to run the
Tomcat daemon as
root,
create a new user/group tomcat
(first make sure that the
UID and GID
you use
are still available
by checking the files /etc/passwd
and /etc/group):
groupadd -g 220 tomcat
useradd -u 220 -g tomcat -c "Tomcat" -r -d /usr/local/tomcat -s "/sbin/nologin" tomcat
|
|
You really should not use the
root account
to run the Tomcat daemon;
(using Tomcat version 4.1.27) we found out that this allows the
MMBase
admin user
to write backup dumps of his sites anywhere on the system.
|
<TODO: better solution available?>
Extract the Tomcat distribution
in a new directory:
cd /usr/local/
tar -zxvf .../jakarta-tomcat-xxx.tar.gz
|
|
Version 4.1.27 came with a hot-fix:
cd /usr/local/jakarta-tomcat-xxx/
tar -zxvf .../xxx-hotfix-xxx.tar.gz
|
|
Change the ownership of the
Tomcat directory
and make it available as
/usr/local/tomcat/:
chown -R tomcat:tomcat /usr/local/jakarta-tomcat-xxx
ln -s /usr/local/jakarta-tomcat-xxx /usr/local/tomcat
|
Open up the firewall for web access
to the Tomcat server
by adding to the file
/etc/sysconfig/iptables:
-A RH-Lokkit-0-50-INPUT -p tcp -m tcp --dport 8080 --syn -j ACCEPT
|
You need to reboot your system to make this rule effective
or restart the iptables firewall:
|
Since (for some odd reason) some network managers allow outgoing web
connections only to
TCP port 80,
there might be people around that cannot access your
Tomcat
(and MMBase) server
through port 8080.
Further below
we will explain how to install
a JK 2 mapping or a reverse proxy
in Apache,
so Tomcat
and MMBase
can be accessed through the
Apache web server
at port 80.
Apart from the port issue,
this has the advantage that you can use
Apache
to manage you SSL connections
and use your existing
Apache
logs and statistics facilities
for Tomcat
and MMBase as well.
If you decide to use
Apache
as a front-end to your
Tomcat
and MMBase server,
there's no need to open up
port 8080
in your firewall.
|
To run Tomcat,
set the $CATALINA_HOME environment variable:
CATALINA_HOME=/usr/local/tomcat
|
and fire it up:
/usr/local/tomcat/bin/startup.sh
|

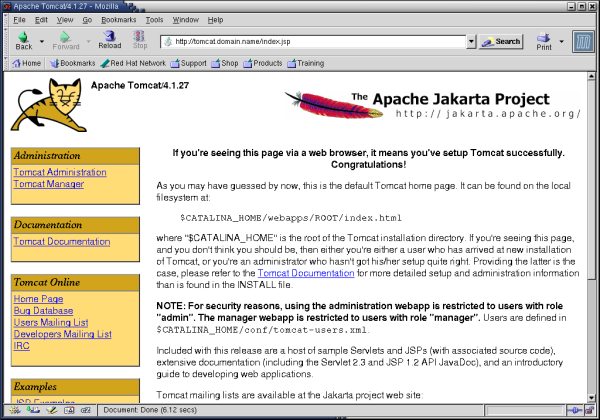

Now you can access
Tomcat's home page through
(replace <hostname> with your hostname):
which should give you the Tomcat
welcome screen.
To shutdown again:
/usr/local/tomcat/bin/shutdown.sh
|
Since we want to automate the starting up and shutting down of the
Tomcat server,
we create a file
/etc/rc.d/init.d/tomcat
to do this for us:
#!/bin/sh
#
# Startup script for the Jakarta Tomcat Java Servlets and JSP server
#
# chkconfig: - 85 15
# description: Jakarta Tomcat Java Servlets and JSP server
# processname: tomcat
# pidfile: /var/run/tomcat.pid
# config:
# Source function library.
. /etc/rc.d/init.d/functions
# Source networking configuration.
. /etc/sysconfig/network
# Check that networking is up.
[ ${NETWORKING} = "no" ] && exit 0
# Set Tomcat environment.
export JAVA_HOME=/usr/local/j2sdk
export CLASSPATH=.:/usr/local/j2sdk/lib/tools.jar:/usr/local/j2re/lib/rt.jar
export CATALINA_HOME=/usr/local/tomcat
export CATALINA_OPTS="-server -Xms64m -Xmx512m -Dbuild.compiler.emacs=true"
export PATH=/usr/local/j2sdk/bin:/usr/local/j2re/bin:$PATH
[ -f /usr/local/tomcat/bin/startup.sh ] || exit 0
[ -f /usr/local/tomcat/bin/shutdown.sh ] || exit 0
export PATH=$PATH:/usr/bin:/usr/local/bin
# See how we were called.
case "$1" in
start)
# Start daemon.
echo -n "Starting Tomcat: "
/usr/local/tomcat/bin/startup.sh
RETVAL=$?
echo
[ $RETVAL = 0 ] && touch /var/lock/subsys/tomcat
;;
stop)
# Stop daemons.
echo -n "Shutting down Tomcat: "
/usr/local/tomcat/bin/shutdown.sh
RETVAL=$?
echo
[ $RETVAL = 0 ] && rm -f /var/lock/subsys/tomcat
;;
restart)
$0 stop
$0 start
;;
condrestart)
[ -e /var/lock/subsys/tomcat ] && $0 restart
;;
status)
status tomcat
;;
*)
echo "Usage: $0 {start|stop|restart|status}"
exit 1
esac
exit 0
|
Set its ownership and access rights:
chown root:root /etc/rc.d/init.d/tomcat
chmod 755 /etc/rc.d/init.d/tomcat
|
And add this init script to
chkconfig:
chkconfig --add tomcat
chkconfig tomcat on
|
|
Instead of creating your own init script,
you can use the script that comes with
the Tomcat package:
/usr/local/tomcat/bin/catalina.sh.
Make sure you set
the Tomcat environment
at the start of this script.
Or create a short init script that calls
the original Tomcat init script.
See
How can I start Tomcat as a daemon in Linux?.
|
|
To install two (or even more) versions of
Tomcat server
on the same system,
increase the port numbers
of the second server (e.g. by 10),
by editing the configuration file
/usr/local/tomcat55/conf/server.xml:
<Server port="8015" shutdown="SHUTDOWN">
...
<!-- Define a non-SSL HTTP/1.1 Connector on port 8080 -->
<Connector port="8090"
maxThreads="150" minSpareThreads="25" maxSpareThreads="75"
enableLookups="false" redirectPort="8453" acceptCount="100"
connectionTimeout="20000" disableUploadTimeout="true" />
...
<!-- Define a SSL HTTP/1.1 Connector on port 8443 -->
<!--
<Connector port="8453"
maxThreads="150" minSpareThreads="25" maxSpareThreads="75"
enableLookups="false" disableUploadTimeout="true"
acceptCount="100" scheme="https" secure="true"
clientAuth="false" sslProtocol="TLS" />
-->
...
<!-- Define an AJP 1.3 Connector on port 8009 -->
<Connector port="8019"
enableLookups="false" redirectPort="8453" protocol="AJP/1.3" />
...
<!-- Define a Proxied HTTP/1.1 Connector on port 8082 -->
<!-- See proxy documentation for more information about using this. -->
<!--
<Connector port="8082"
maxThreads="150" minSpareThreads="25" maxSpareThreads="75"
enableLookups="false" acceptCount="100" connectionTimeout="20000"
proxyPort="80" disableUploadTimeout="true" />
-->
|
Complete this second
Tomcat server installation
as above for the first server,
using adjusted directory and file names.
|
